一,产品概述(General Description)      RWw嘉泰姆
RWw嘉泰姆
   The CXLD6427  CXLD6429 series are highly accurate, Dual low noise, CMOS LDO RWw嘉泰姆

voltage regulators.Performance features of the series include low output noise, RWw嘉泰姆

high ripple rejection ratio, low dropout and very fast turn-on times. RWw嘉泰姆
     The output voltage for each regulator is set independently by laser trimming.RWw嘉泰姆
The CXLD6427 CXLD6429 series is also fully compatible with low ESR ceramic RWw嘉泰姆

capacitors,reducing cost and improving output stability.RWw嘉泰姆
    This high level of output stability is maintained even during frequent loadRWw嘉泰姆
fluctuations, due to the excellent transient response performance and high PSRRRWw嘉泰姆
achieved across a broad range of frequencies. The EN function allows the outputRWw嘉泰姆
of each regulator to be turned off independently, resulting in greatly reducedRWw嘉泰姆
power consumption. The CXLD6427 series is available in the TSOT23-6L orRWw嘉泰姆
SOT23-6L packages(or upon request).RWw嘉泰姆
二.产品特点(Features)RWw嘉泰姆
RWw嘉泰姆
Maximum Output Current : More thanRWw嘉泰姆
150mA (300mA limit)RWw嘉泰姆
Dropout Voltage : 100mV @100mARWw嘉泰姆
OUT1 Voltage: 2.8VRWw嘉泰姆
OUT2 Voltage: 1.8VRWw嘉泰姆
Operating Voltage Range : 2.9V ～ 5.5VRWw嘉泰姆
Low Power Consumption :180μA (TYP.)RWw嘉泰姆
Operating Temperature Range : -40℃ ~+85℃RWw嘉泰姆
Low ESR Capacitor Compatible : Ceramic capacitorRWw嘉泰姆
Low Output NoiseRWw嘉泰姆
Ultra Small Packages : TSOT23-6L orSOT23-6LRWw嘉泰姆
三,应用范围 (Applications)RWw嘉泰姆
RWw嘉泰姆
Mobile PhonesRWw嘉泰姆
Cordless phones and radio communication equipmentRWw嘉泰姆
Portable gamesRWw嘉泰姆
Cameras, Video recordersRWw嘉泰姆
Portable Audio EquipmentRWw嘉泰姆
PDAsRWw嘉泰姆
四.技术规格书下载（产品PDF）RWw嘉泰姆
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！RWw嘉泰姆

 RWw嘉泰姆

五,产品封装图 (Package)RWw嘉泰姆
RWw嘉泰姆
RWw嘉泰姆

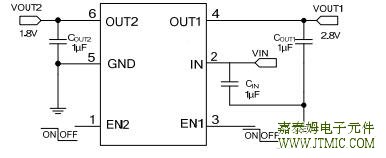

六.电路原理图RWw嘉泰姆
RWw嘉泰姆
RWw嘉泰姆
七,功能概述RWw嘉泰姆
RWw嘉泰姆
Absolute Maximum Ratings (Note 1)RWw嘉泰姆

Supply Input Voltage ……………………………………………….……….………………………………6VRWw嘉泰姆
Lead Temperature (Soldering, 10 sec.) ……………………………...…………………….…….…..+265℃RWw嘉泰姆
Storage Temperature Range ………………………………………………….……....… -65℃ ～ +150℃ RWw嘉泰姆

Recommended Operating Conditions (Note 2)RWw嘉泰姆

Supply Input Voltage …………………………………………...………………………….…… 2.9V ～ 5.5VRWw嘉泰姆
EN Input Voltage ………………………………………………………….………………….…… 0V ～ 5.5VRWw嘉泰姆
Junction Temperature Range………………………………………………….…………..…-40℃～ +125℃RWw嘉泰姆
Ambient Temperature Range………………………………...…….……………………...…-40℃ ～ +85℃RWw嘉泰姆
