The CXEP2329 and CXEP2329A are highly integrated SoCs with an MPU core, RTC, flash, and LCD driver, delta-sigma ADC provides up to six analog inputs. Digital temperature compensation, precision voltage reference, and 32-bit computation engine (CE) supports a wide range of single and polyphase metering applications with very few low-cost external components. A 32kHz crystal time base for the entire system and internal battery-backup support for RAM and RTC further reduce system cost.Maximum design flexibility is supported with multiple UARTs, I2C, a power-fail comparator, a 5V LCD charge pump, up to 22 DIO pins, and an in-system programmable flash. The device is a standard (0.5%) accuracy version for multifunction residential/commercial meter applications requiring multiple voltage/current inputs and complex LCD or DIO configurations.A complete array of ICE and development tools, programming libraries, and reference designs enable rapid development and certification of meters that meet most demanding worldwide electricity metering standards.

   产品特点 返回TOPiXM嘉泰姆

iXM嘉泰姆

Wh Accuracy < 0.1% Over 2,000:1 Current Range iXM嘉泰姆

 Exceeds IEC 62053/ANSIC 12.20 iXM嘉泰姆

 Voltage Reference < 10ppm/iXM嘉泰姆

C (CXEP2329A) < 40ppm/°C (CXEP2329) iXM嘉泰姆

 Six Sensor Inputs—VDD Referenced iXM嘉泰姆

 Auxiliary Analog Input for Neutral Current iXM嘉泰姆

 Low Jitter Wh/VARh Pulse Outputs iXM嘉泰姆

 Pulse Count For Pulse Outputs iXM嘉泰姆

 Four-Quadrant Metering iXM嘉泰姆

 Phase Sequencing iXM嘉泰姆

 Line Frequency Count for RTC iXM嘉泰姆

 Digital Temperature Compensation iXM嘉泰姆

 Sag Detection iXM嘉泰姆

 Independent 32-Bit Compute Engine iXM嘉泰姆

 40-70Hz Line Frequency Range with Same Calibration iXM嘉泰姆

 Phase Compensation (7) iXM嘉泰姆

 Battery Backup for RAM and RTC iXM嘉泰姆

 22mW at 3.3V, 7.2W Backup iXM嘉泰姆

 Flash Memory Option with Security iXM嘉泰姆

 8-Bit MPU (80515)—One Clock Cycle per Instruction iXM嘉泰姆

 LCD Driver ( 168 Pixels) iXM嘉泰姆

 High-Speed SSI Serial Output iXM嘉泰姆

 RTC for Time-of-Use Functions iXM嘉泰姆

 Hardware Watchdog Timer iXM嘉泰姆

 Up to 22 General-Purpose I/O Pins iXM嘉泰姆

 64KB Flash, 7KB RAM iXM嘉泰姆

 Two UARTs for IR and AMR iXM嘉泰姆

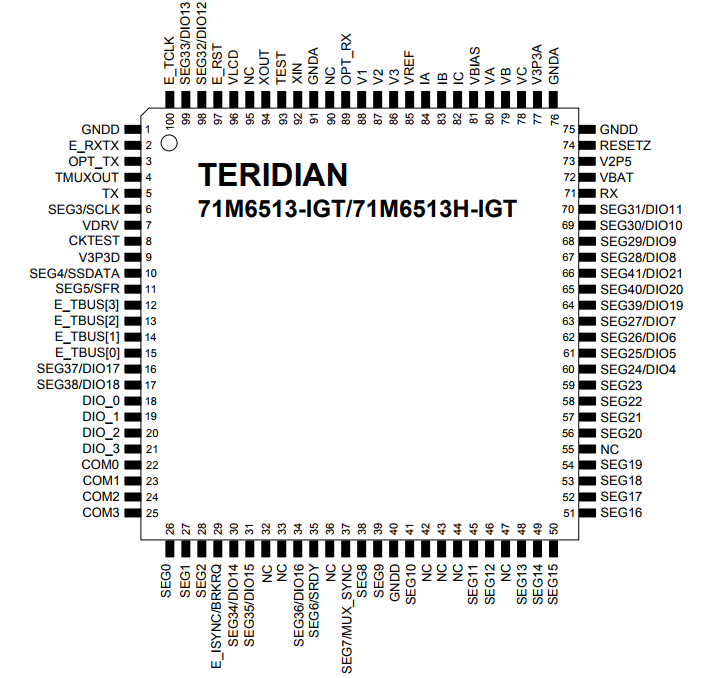

 100-Pin LQFP Package
iXM嘉泰姆

   应用范围 返回TOPiXM嘉泰姆

Industrial, Commercial, and Residential MetersiXM嘉泰姆
