CXLD64007开关电源后调节高精度低噪声LDO调压器输出电压可通过外部电阻设置硬盘控制器电池充电器 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|

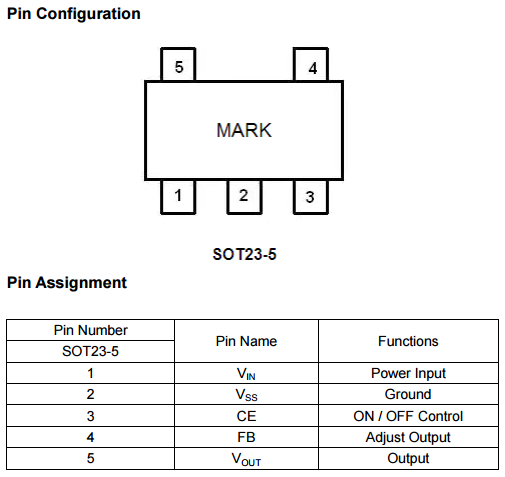

目录7.相关产品 产品概述 返回TOP The CXLD64007 series are highly accurate, low noise, LDO Voltage Regulators .The output voltage can be set via the external resistor. On chip trimming adjusts the reference/output voltage to within ±2% accuracy. Internal protection features consist of output current limiting, safe operating area compensation, and thermal shutdown. The current limiter’s feedback circuit also operates as a short protect for the output current limiter and the output pin. The CE function allows the output of regulator to be turned off, resulting in greatly reduced power consumption. The CXLD64007 series can operate with up to 18V input.产品特点 返回TOP Maximum Output Current: 400mA Voltage Setting via External Resistor:1.25V~8V Dropout Voltage:125mV@ IOUT =100mA (Vout=3.3V) Operating Voltage Range: 2.8V～18V Highly Accuracy: ±2％ Standby Current: 45uA（TYP.） Line Regulation: 30mV（TYP.） Temperature Stability≤0.5% Thermal Shutdown Protection：165℃ Packages:SOT23-5 应用范围 返回TOP Consumer and Industrial Equipment Point of Regulation Switching Power Supply Post Regulation Hard Drive Controllers Battery Chargers 技术规格书（产品PDF) 返回TOP 需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！ 产品封装图 返回TOP
电路原理图 返回TOP
相关芯片选择指南 返回TOP 更多同类产品......
